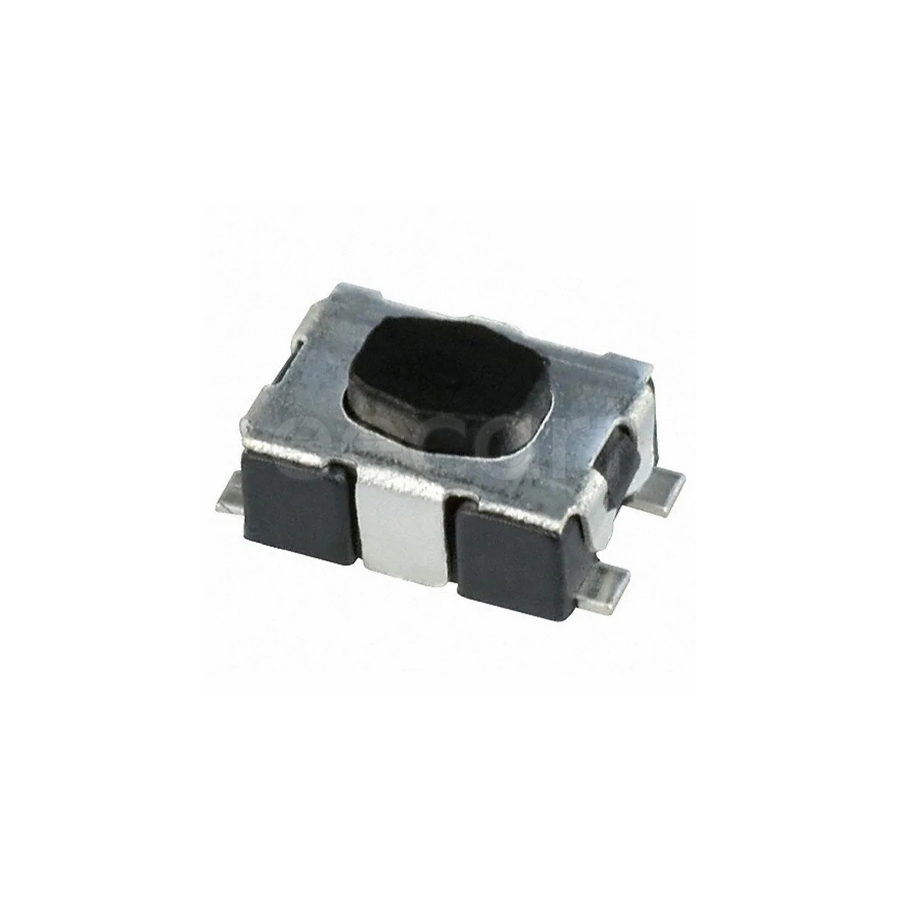

KMR231GLFS
Manufacturer:
C&K Components
Mfr.Part #:
KMR231GLFS
Datasheet:
Description:
Tactile Switches SMD/SMT Off-Mom 3 N
| Parameter | Value |
|---|---|
| Orientation | Vertical |
| Contact Plating | Silver |
| Lead Free | Lead Free |
| Voltage Rating (DC) | 32 V |
| Packaging | Reel |
| Mount | SMD/SMT |
| Min Operating Temperature | -40 °C |
| Operating Force | 3 N |
| Life (Cycles) | 150 kCycles |
| Max Operating Temperature | 85 °C |
| Contact Current Rating | 50 mA |
| Contact Resistance | 100 mΩ |
| Height | 1.9 mm |
| Switch Function | Off-Mom |
| Current Rating | 50 mA |
| Insulation Resistance | 1 GΩ |
| Power Rating | 1 W |
| Switch Travel | 250 µm |
| Throw Configuration | SPST |
| Actuator Length | 500 µm |
| Termination | Gull Wing |
| Illumination Type | Illuminated, Non-Illuminated |
| Length | 2.8 mm |
| Max Voltage Rating (DC) | 32 V |
| Mechanical Life | 150 kcycles |
| Contact Material(Contact Finish) | Silver |
| Depth | 4.6 mm |
| Max Current Rating | 50 mA |
| Width | 4.6 mm |
| Case/Package | SMD/SMT |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Number of Positions | 2 |
| Actuator Type | Standard |
| RoHS | Compliant |
